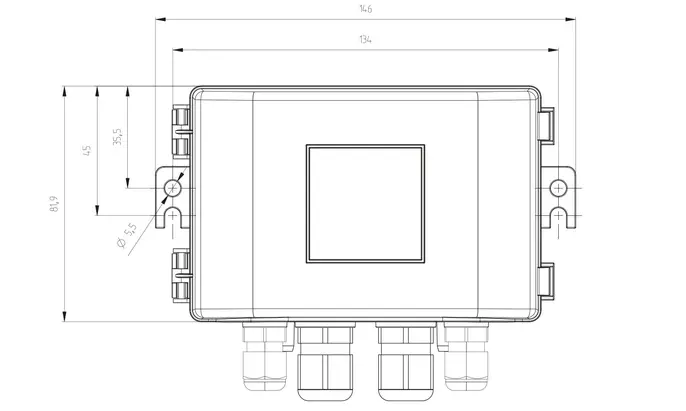

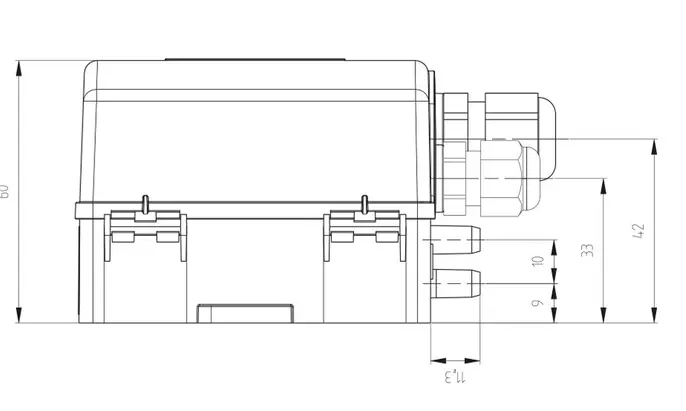

Technical drawings
Downloads
Accessories
Differential pressure transmitter 699M
The differential pressure transmitters of Type 699M are primarily used for monitoring air and neutral gases. The device is available with either one or two differential pressure sensors, enabling the monitoring of differential pressure or volumetric flow at two different points within the system. This makes the 699M ideal for a wide range of tasks in ventilation technology. The 699M communicates via Modbus® RTU and features 2 analog inputs as well as 2 analog outputs. The ability to connect additional sensors and control actuators allows the device to function as a decentralized node for existing controllers, expanding inputs and outputs while reducing installation costs. The sensor technology integrated into the device is based on the unique ceramic bending beam technology developed by Huba Control, which has already proven itself millions of times.
  • High accuracy and excellent long-term stability due to proven ceramic bending beam technology
  • Modbus® RTU interface
  • Optionally available with one or two differential pressure sensors
  • Up to 2 analog inputs for 0-10 V or passive temperature elements
  • 2 analog outputs 0-10 V
  • Simple installation
Differential pressure transmitter 699M
Product feature
Pressure measuring range
0 ... 7000 Pa (Relative and difference)
Measurand
Pa; psi; mmHG; mmH2O
Response time
<1 s
Sensor weight
250 g
Field of application
Media
Air (non-condensing); neutral gas (non-condensing)
Medium temperature
0 ... 70 °C
Permissible overload on one side P+
10000 Pa (short-term)
Permissible overload on one side P-
400 Pa (short-term)
Bursting pressure
20000 Pa (at room temperature); 15000 Pa (at 70°C)
Ambient condition
Ambient temperature
-25 ... 50 °C
Storage temperature
-30 ... 70 °C
Condensation
no condensation
Material
Housing with media contact
Polycarbonate PC; Polyamide (PA)
Membrane with media contact
Silicone
Measuring element with media contact
Ceramic Al2O3 (96 %)
Electrical data
Power consumption
<2 VA
Supply voltage
24 VAC/DC (±15%)
Inverse-polarity protection
Each connection against each other with max. supply voltage.
Cable length
<50 m (Signal cabling); <100 m (Modbus® cabling)
IP protection class
IP 54
Protection class
3
Electrical connection
Screw terminals for wires and strands up to 2.5 mm; 2 x cable bushings with SSW 15 for cable Ø 3 - 6 mm; 2 x cable bushings SSW 20 for cable Ø 5 - 10 mm
Installation guide
Installation orientation
Vertical, pressure connections downwards.
Assembly
with mounting bracket (integrated in the housing)
Approval
UL
ANSI/UL 60730-1
CE-compliant
according to 2014/30/EU applied standard EN 60730-1
Differential pressure transmitter 699M
Differential pressure transmitter 699M
Differential pressure transmitter 699M
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page .
EN-GB
Data Sheet 699M
Data Sheet
PDF
EN-GB
FR
DE
Operating Instruction 699M
Operating Instruction
PDF
Differential pressure transmitter 699M
Order number
Accessories
100064
Connection set straight
for ventilation duct; including 2 m hose; (plastic)
104312
Connection set 90° angled
for ventilation duct; including 2 m hose; (metal)
