Hydrostatic level transmitter 713
The hydrostatic level transmitters of Type 713 are used for the continuous level and depth measurement of groundwater and drinking water. Thanks to its compact design, this level probe is ideal for use in confined installation spaces. Its slim diameter of 18.5 millimeters allows installation in ¾-inch pipes.
To ensure optimal connectivity, they are available with a current output, as well as an energy-efficient ratiometric or digital output. This makes the probe particularly suitable for use in battery-powered applications.
The Type 713 level transmitter is based on the ceramic technology developed by Huba Control, which has been successfully used by customers millions of times.
- Measuring cell Al2O3 99.6 %
- Continuous level measurements
- Suitable for drinking water
- Optionally with integrated temperature measurement
- Suitable for installation in ¾-inch pipes
- Excellent linearity
- High long-term stability
Hydrostatic level transmitter 713
Product feature
Pressure measuring range
0 ... 16 bar (Relative); 0,8 ... 6 bar (Absolute)
Response time
<2 ms
Switch-on delay
<10 ms (Time from application of the minimum supply voltage)
Sensor weight
120 g
Field of application
Media
Groundwater; Drinking water
Medium temperature
-20 ... 80 °C (Non-freezing media)
Permissible overload
according to variant plan
Ambient condition
Ambient temperature
-20 ... 80 °C (Non-freezing media)
Storage temperature
-40 ... 80 °C
Material
Housing with media contact
Stainless steel 1.4404 (AISI 316L)
Measuring element with media contact
Ceramic Al2O3 (99.6 %)
Cables with media contact
PE-HD
Protective cap with media contact
PPE
Sealing material with media contact
FPM; EPDM
Electrical data
Current consumption
<23 mA
Inverse-polarity protection
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage.
Overvoltage protection
6; 36 VDC
Insulation voltage
500 VDC
IP protection class
IP 68 (Permanent immersion up to max. overpressure (see variant plan))
Protection class
3 (Permanent immersion up to max. overpressure (see variant plan))
Approval
EMC compatibility
CE-compliant in accordance with EN 61326-2-3
Drinking water test certificates for plastic parts
UBA Guideline (KTW and elastomer); DVGW worksheet W270
Drinking water authorisation
ACS; WRAS
UL
ANSI/UL 61010-1 nach E325110
Shock
25 g, 6 ms, half-sine curve, all 3 directions (according to IEC 60068-2-27)
Vibration
1 g, 2 ... 2000 Hz with amplitude ±15 mm, 1 octave/minute, all 3 directions (according to IEC 60068-2-6)

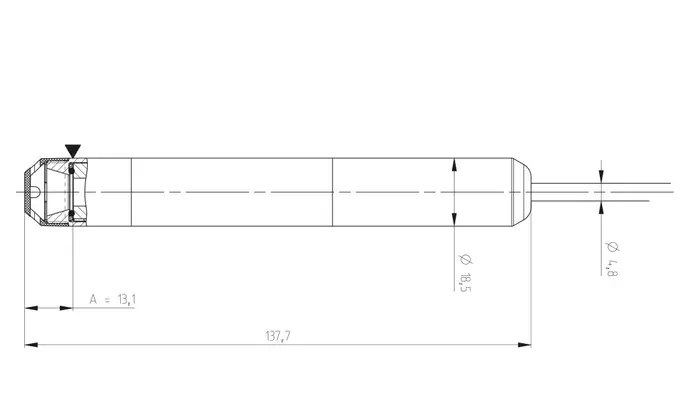

Hydrostatic level transmitter 713
Hydrostatic level transmitter 713
Hydrostatic level transmitter 713
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page
.
EN-GB
Data Sheet 713
Data Sheet
PDF
FR
DE
EN-GB
Operating Instruction 713
Operating Instruction
PDF
EN-GB
Drinking water authorisation WRAS
Certificate
PDF
FR
713 Approbation de l'eau potable ACS
Certificate
PDF
DE
EN-US
Delaration of Conformity (EMC/RoHS) 713
Declaration of conformity (EMC/RoHS) 713
Declaration of Conformity
PDF
Hydrostatic level transmitter 713
Order number
Accessories
104551
Calibration certificate
118026
Cable hanger
118027
Connection box
(not suitable for output/Power supply ratiometric with temp. (4-L))
118068
Moisture protection element (pack of 10)
