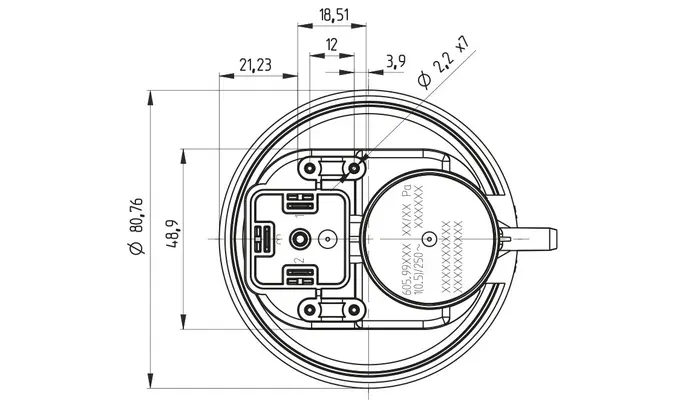

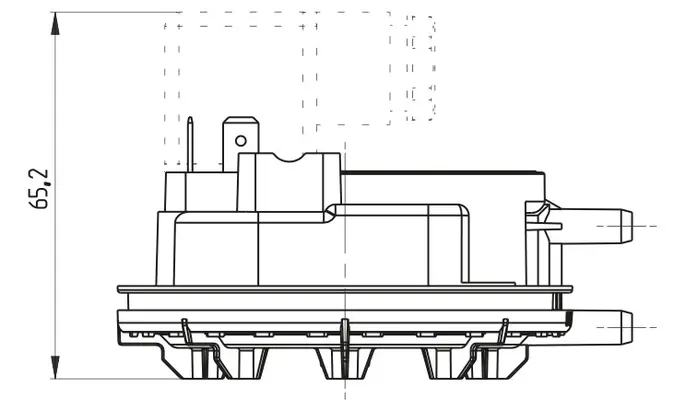

Technical drawings
Downloads
Accessories
Mechanical Differential pressure switch 605
The pressure switches of Type 605 have been specially developed for use in gas-fired heating appliances. Worldwide, more than 40 million switches, manufactured on a fully automated production line, are in use. High reliability, adjustment accuracy, and reproducibility are essential features.
- Switch mounting – quick installation with snap bracket system
- Adjustment protection
- High contact force (10 cN typical): Significantly less susceptibility to contact contamination
- Rolling motion of the contact surface: Less sensitive to contact contamination due to self-cleaning effect
- High long-term stability through the use of 2-component liquid silicone
- More precise transmission of contact triggering and thus more precise switching points due to trapezoidal membrane bead shape
Mechanical Differential pressure switch 605
Product feature
Pressure measuring range
20 ... 400 Pa (Relative and differential)
Pressure connection
Hose nozzle (Ø 6.2 mm); Aperture (For damping pulsating pressures mounted on P1, P2 or both (optional))
Sensor weight
60 g
Field of application
Media
Air; neutral gas
Medium temperature
-30 ... 110 °C
Permissible overload on one side
5000 Pa (< 85 ºC); 1500 Pa (85 ... 110 ºC)
Ambient condition
Ambient temperature
-30 ... 110 °C
Storage temperature
-30 ... 110 °C
Material
Housing with media contact
PC Lexan 500R (Glass fibre reinforced plastic 10 % GF)
Measuring element with media contact
Silicone LSR
Electrical data
Switching load
see nominal load limits
Contact system
Changeover switch
Lifespan
>10000000 Schaltspiele (mechanical)
IP protection class
IP 00 (without cover); IP 30 (With contact protection); IP 54 (With cover without seal); IP 65 (With cover and seal)
Installation guide
Installation orientation
Please specify when ordering.
Assembly
With different angles; Snap ring for quick mounting
Approval
UL
MFHX2/8 or XAAK2/8
DVGW
according to DIN EN 1854
EC type examination certificate
CE-0085AP0974
Low Voltage Directive
2014/35/EU
Gas Appliances Directive
2016/426/EU
Mechanical Differential pressure switch 605
Mechanical Differential pressure switch 605
Mechanical Differential pressure switch 605
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page
.
EN-GB
Data Sheet 605
Data Sheet
PDF
DE
605 Baumusterprüfbescheinigung Gas DVGW
605 Type examination certificate gas DVGW
Certificate
PDF
Mechanical Differential pressure switch 605
Order number
Accessories
100293
Snap ring
for angle A, B, C or direct mounting; for wall thickness 1.8 ... 2.1 mm
100294
Snap ring
for angle A, B, C or direct mounting; for wall thickness 0.8 ... 1.1 mm
100295
Angle type A
100296
Angle type B
100297
Contact protection
with PT screw and cable outlet for AMP-1
100298
Contact protection
with PT screw and cable outlet for AMP-2
100306
Cover
with seal and PT screw
100307
Cover
Without seal and PT screw
102981
PT screw
for contact protection
104551
Calibration certificate
106707
Holder
106790
Snap ring
(with mounting holes)
111223
Mounting small
112985
Mounting large
