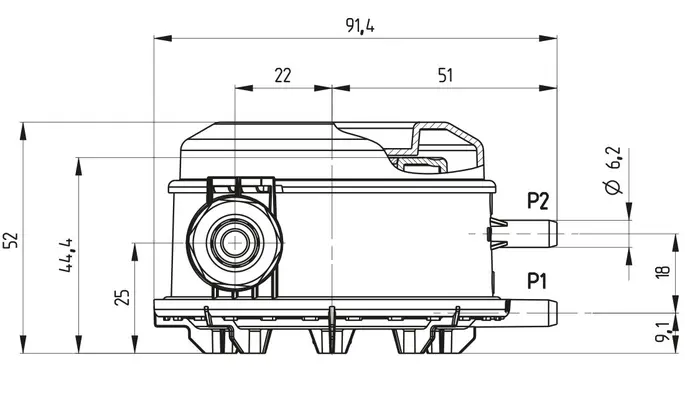

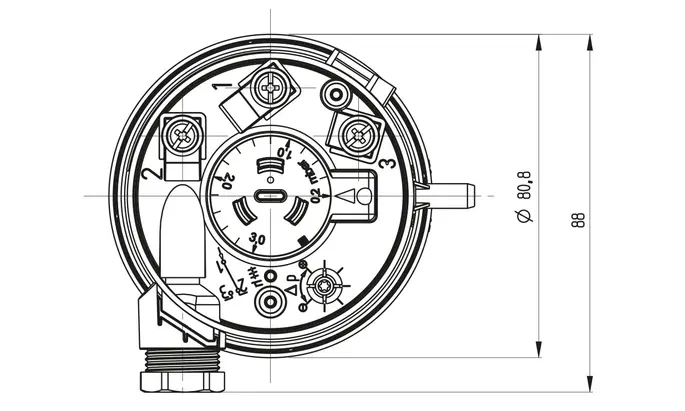

Technical drawings
Downloads
Accessories
Mechanical Differential pressure switch 604
The pressure switches of Type 604 monitor filters and fans in ventilation ducts as well as air dampers in primary/secondary controls in Δp function. The series, divided into five pressure range gradations, impresses with extreme ease of installation, combination brackets, snap-on covers, and screw terminals. Unique is the high adjustment accuracy through individual scale engraving.
- Easy to install
- User-friendly snap closure for the cover
- Cable entry aid
- Cable strain relief integrated into PG11
- Combination bracket for vertical or horizontal mounting
- High adjustment accuracy through individual scale engraving per switch
- Long-term stable switching points through trapezoidal bead membrane
- Multilayer contact with gold plating
Mechanical Differential pressure switch 604
Product feature
Pressure measuring range
0 ... 50 mbar (Relative and differential)
Sensor weight
143 g (With type C combination bracket)
Field of application
Media
Air; neutral gas
Medium temperature
-30 ... 85 °C
Permissible overload on one side
75 mbar (-30 ... 75 ºC); 50 mbar (-30 ... 85 ºC)
Ambient condition
Ambient temperature
-30 ... 85 °C
Storage temperature
-40 ... 85 °C
Material
Housing with media contact
PC 10 % GF
Measuring element with media contact
Silicone LSR (tempered at 200 °C, outgassing-free)
Cover with media contact
PC
Electrical data
Switching load
5 A (at 250 VAC)
Resistive switching load
4 A (at 30 VDC)
Inductive switching load
0.8 A (at 250 VAC); 0.7 A (at 30 VDC)
Switching load GAR Application
1 A (at 250 VAC); 0.2 A (at 30 VDC)
Contact system
Changeover switch
Lifespan
>10000000 Schaltspiele (mechanical)
Installation guide
Installation orientation
any (Recommendation: Vertical, pressure connections downwards; factory adjustment); any (Recommendation: Horizontal, cover down; switching points are approx. 11 Pa lower than the set scale value); any (Recommendation: Horizontal, cover upwards; switching points are approx. 11 Pa higher than the set scale value)
Approval
UL
MFHX2/8 or XAAK2/8
DVGW
according to DIN EN 1854
Low Voltage Directive
2014/35/EU
Gas Appliances Directive
2016/426/EU
Mechanical Differential pressure switch 604
Mechanical Differential pressure switch 604
Mechanical Differential pressure switch 604
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page
.
EN-GB
Data Sheet 604
Data Sheet
PDF
FR
DE
EN-GB
Operating Instruction 604
Operating Instruction
PDF
DE
604 Baumusterprüfbescheinigung Gas DVGW
604 Type examination certificate gas DVGW
Certificate
PDF
Mechanical Differential pressure switch 604
Order number
Accessories
100064
Connection set straight
for ventilation duct; including 2 m hose; (plastic)
100098
Angle type B
100106
Combination bracket type C
100293
Snap ring
for angle A, B, C or direct mounting; for wall thickness 1.8 ... 2.1 mm
100294
Snap ring
for angle A, B, C or direct mounting; for wall thickness 0.8 ... 1.1 mm
100295
Angle type A
102976
Fastening screw
for wall thickness 1 - 2 mm; Screw length 6 mm (min. 2 screws required)
104312
Connection set 90° angled
for ventilation duct; including 2 m hose; (metal)
104551
Calibration certificate
110005
Mounting ring
110006
Closed fastening ring
