Pressure measuring cell 513
The pressure measuring cells of Type 513 have a calibrated, amplified sensor signal. They are specifically suitable for high quantities in OEM applications. The uniquely integrated electronics allow installation without customer-specific temperature and pressure adjustment.
- Integrated amplifier electronics
- No customer-specific adjustment required
- Minimal temperature influences on accuracy
- Simple and quick installation
- Exceptionally good EMC properties due to amplification on the measuring cell
Pressure measuring cell 513
Product feature
Pressure measuring range
-1 ... 600 bar (Relative); 0 ... 25 bar (Absolute); 0,8 ... 1,4 bar (Barometric sensor)
Response time
<2 ms (typ. 1 ms)
Load change
<100 Hz
Sensor weight
5 g
Field of application
Media
Liquids; Gas
Medium temperature
-15 ... 125 °C (FPM); -25 ... 85 °C (NBR); -30 ... 150 °C (FPM spez.)
Temperature influence TC zero point
max. ± 0.15% FS/10K (in the range -30 ... 125 ºC)
Temperature influence TC fs
max. ± 0.15% FS/10K (in the range -30 ... 125 ºC)
Permissible overload
2 x FS; 2,5 x FS; 3 x FS
Burst pressure
2 x FS; 2,5 x FS; 3 x FS
Moisture protection
KFW, 20 days according to DIN 50017
Ambient condition
Storage temperature
-40 ... 130 °C (without packaging); -40 ... 65 °C (Packed)
Material
Measuring element with media contact
Ceramic Al2O3 (96 %)
Sealing material with media contact
FPM; NBR; FPM spez.
Electrical data
Current consumption
<4 mA (at nominal pressure without load)
ESD handling
Necessary
Electrical connection
Connector RAST 1.27; Flex connection RAST 2.54
Approval
EMC compatibility
The product is intended exclusively for installation in appliances that fulfil the requirements of the EC directives. CE certification is the responsibility of the customer.
Installation guide
Installation orientation
As recommended by Huba Control, with special installation instructions

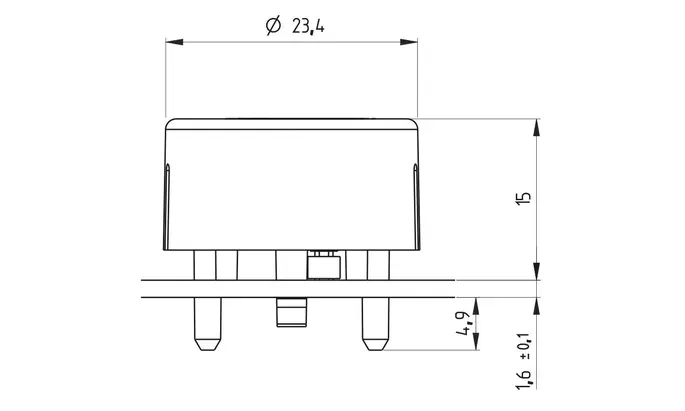

Pressure measuring cell 513
Pressure measuring cell 513
Pressure measuring cell 513
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page
.
EN-GB
Data Sheet 513
Data Sheet
PDF
Pressure measuring cell 513
Order number
Accessories
102321
O-ring
> 100 bar; FPM spez.
104952
O-ring
> 100 bar; NBR
105145
O-ring
< 60 bar; NBR
105285
O-ring
> 100 bar; FPM
105598
O-ring
< 60 bar; FPM
107383
Positioning ring
> 160 bar; (metal)
107397
Positioning ring
< 160 bar; (PPS)
107926
Positioning ring
Without cams; < 160 bar; (PPS)
109225
Connection print
(connector counterpart)
109338
O-ring
< 60 bar; FPM spez.
112151
Clamping screw M20x1
112187
Screw insert
for cell
114660
Teflon support ring
> 100 bar
