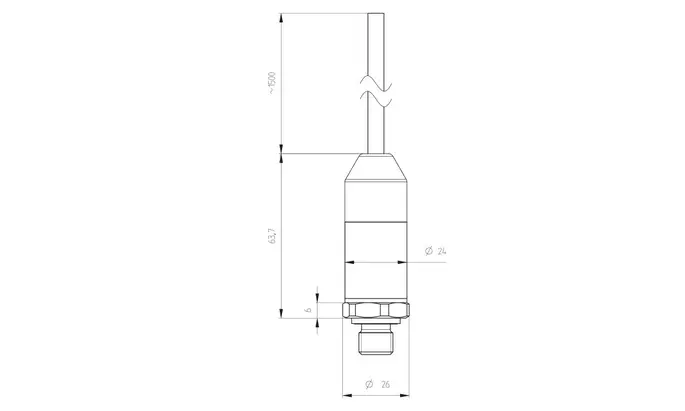

Technical drawings
Downloads
Accessories
Pressure transmitter 512
The pressure transmitters of Type 512 meet the highest demands of mobile hydraulic applications. The sensor has been fully developed with the IP69K protection rating and withstands even the most extreme temperature and weather conditions, ranging from -40 to 100 °C. Its compact and robust design complies with the requirements for shock and vibration resistance according to the automotive standard ISO 16750.
Additionally, the 512 pressure transmitter ensures maximum electromagnetic compatibility (EMC) in accordance with various automotive directives, with test levels of up to 100 V/m.
- Rugged PUR cable with IP69K
- Welded without seals
- Minimal temperature influences on accuracy
- Excellent EMC properties
- Use under extreme conditions
- No elastomer seals
Pressure transmitter 512
Product feature
Pressure measuring range
0 ... 1000 bar
Response time
<2 ms (10 ... 90 %, typ. 1 ms))
Load change
<100 Hz
Sensor weight
176 g
Field of application
Media
Liquids; Gas
Medium temperature
-40 ... 125 °C
Permissible overload
2,5 x FS (max. 1500 bar); 3 x FS
Burst pressure
4 x FS (max. 2500 bar); 6 x FS
Ambient condition
Ambient temperature
-40 ... 100 °C
Storage temperature
-40 ... 100 °C
Material
Housing
Stainless steel 1.4404 (AISI 316 L)
Cables
PUR
Measuring element with media contact
Stainless steel
Pressure connection with media contact
Stainless steel 1.4404 (AISI 316 L)
Electrical data
Inverse-polarity protection
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage.
Insulation voltage
1000 VDC
Electrical connection
Cable 1.5 m
IP protection class
IP 69 K; IP 68
Protection class
3
Installation guide
Installation orientation
any
Approval
Interference resistant Industrial sector
EN 61000-6-2
Interference emission Residential and commercial areas
EN 61000-6-3
Environmental testing
ISO 16750-Z-J-A-L-Z-IP69K
Shock according to ISO 16750-3
50 g, 11 ms, half-sine curve, 1000x / axis
Vibration according to ISO 16750-3
Test VI (12 g, sinusodial 18 g random vibration)
cULus
ANSI/UL 61010-1 gemäss E325110
Pressure transmitter 512
Pressure transmitter 512
Pressure transmitter 512
Download the product-specific technical documents here in the language of your choice or open it in a new window . You can find all product and business-relevant documents on our central download page
.
EN-GB
Data Sheet 512
Data Sheet
PDF
FR
DE
EN-GB
Operating Instruction 512
Operating Instruction
PDF
Pressure transmitter 512
Order number
Accessories
104551
Calibration certificate
105073
Heat sink
with external thread G ½ - internal thread G ¼
105074
Heat sink
with external thread G ¼ front sealing - internal thread G ¼
118716
Mounting bracket
With screw
