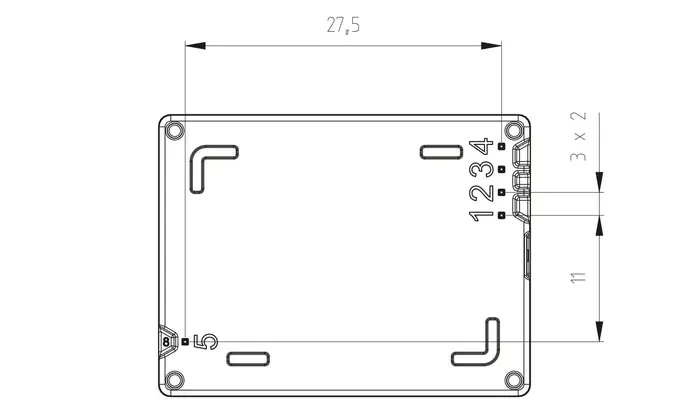

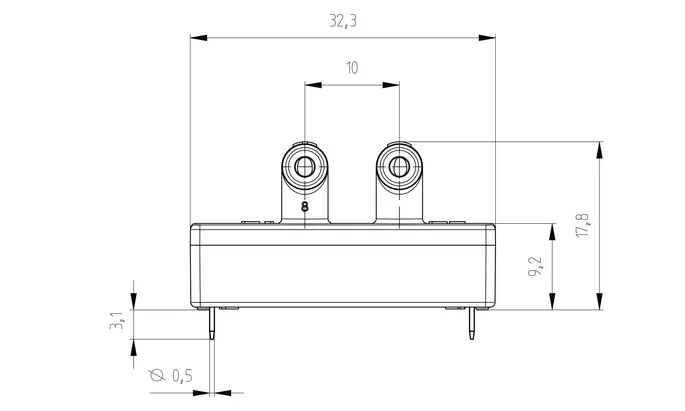

Technical drawings
Downloads
Differential pressure transmitter 450
The differential pressure transmitter Type 450 is a robust sensor housed in a compact casing, making it ideal for use in a wide range of applications with air and neutral gases. Contamination by small dust particles poses no problem for this transmitter. The Type 450 is particularly well-suited for HVAC applications.
In addition to the analog output, the Type 450 is also available with a digital I²C output. The output signals are temperature-compensated, linear, and amplified. Installation is straightforward and can be done directly onto a PCB.
- Suitable for low-pressure ranges
- Excellent accuracy and long-term stability across the entire measuring range
- Output signal temperature-compensated from -10 … +80 ºC
Differential pressure transmitter 450
Product feature
Pressure measuring range
-1 ... 100 mbar (Relative and differential)
Response time
<2 ms
Sensor weight
12 g
Field of application
Media
Air; neutral gas
Medium temperature
-20 ... 85 °C
Burst pressure
3 x FS; 3 x FS
Ambient condition
Ambient temperature
-20 ... 85 °C
Temperature compensation
-10 ... 80 °C
Storage temperature
-40 ... 100 °C
Material
Housing
Polyamide (PA)
Sealing material
TPE
Measuring element
Ceramic Al2O3 (96 %)
Membrane
Silicone
Electrical data
Current consumption
<5 mA
Inverse-polarity protection
Mechanically guaranteed
I2C specification
Clock and data line Pull-up resistors ≥ 1kOhm on VDD, capacitance ≤ 200 pF (user specification); Clock frequency ≤ 100 kHz (standard 100 kbit/s)
IP protection class
IP 00
Protection class
3
Installation guide
Installation orientation
Printed circuit board assembly
Soldering process
Suitable for wave soldering (process time < 3 minutes, peak top side temperature < 145°C); Suitable for manual soldering; Not suitable for reflow soldering
Approval
EMC compatibility
according to EN 61326-2-3
UL
UL 60730-1 according to E334896
Differential pressure transmitter 450
Differential pressure transmitter 450
Differential pressure transmitter 450
